2d and 3d scanning of the foot

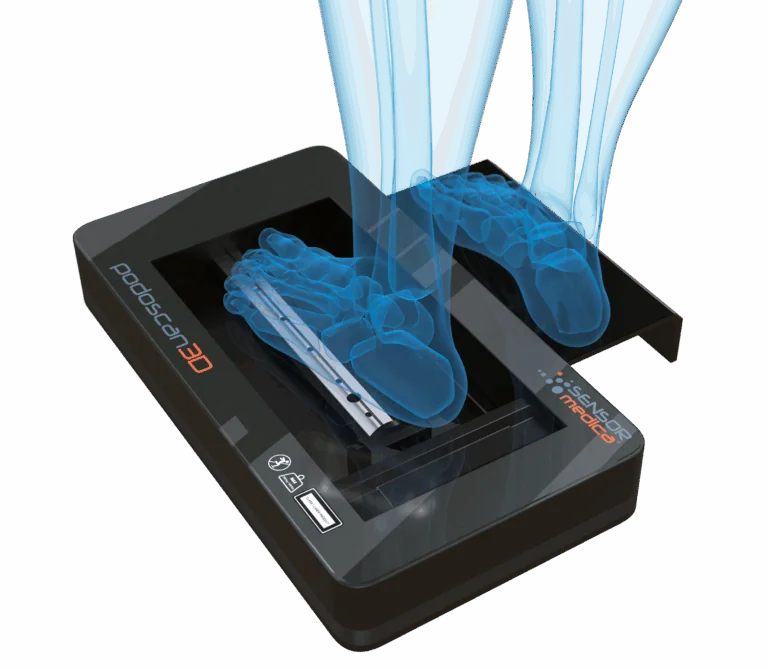

Podoscan 3D is a high optoelectronic tool definition for the detection of the image in three dimensions of the physiology of the foot. With an accuracy of one millimeter, allows you to capture the image of the foot in loaded, half loaded and unloaded positions. Podoscan 3D also detects the footprint left in the phenolic foam. It is aimed mainly at the customized orthotic production really corresponding to morphological needs of the client. The image is captured using the software freeStep and it can be immediately exported in the easyCAD Insole design software.
PRODUCT FEATURES
Extended Data Acquisition
Monopodalic acquisition in load, semi-load and out load or phenolic foam and scanning evaluation through the freeStep software
ELECTRONIC ACHIVING
Digitization of molds and foams, allows electronic storage of data of the patient, freeing the spaces destined to the physical archiving of the casts
Fully Compatible With Easycad
Get the best experience acquiring data for plantar orthosis using our software easyCAD Insole, speeding up the production process
TECHNICAL SPECIFICATIONS
- Dimensions: 545 x 293 x 88 mm
- Scan area: 340 x 160 x 80 mm
- Scan time: 3/5 “
- Accuracy: 1 mm
- Weight: 6 kg
- Maximum load: 200 kg
- Computer connection: USB
- Scanning: Feet, phenolic foams, casts
- Accessories: start acquisition pedal, support for semi-loaded acquisitions and transport bag
Podoscan 2D
Podoscan 2D is an advanced optoelectronic instrument with high-definition capabilities designed for capturing the real image of a foot’s imprint using a digital scanner. This device holds fundamental importance, especially in cases involving patients with amputations or foot deformities.

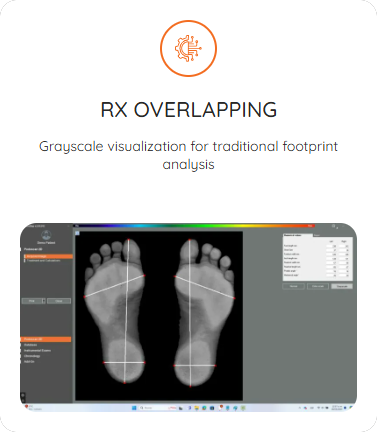

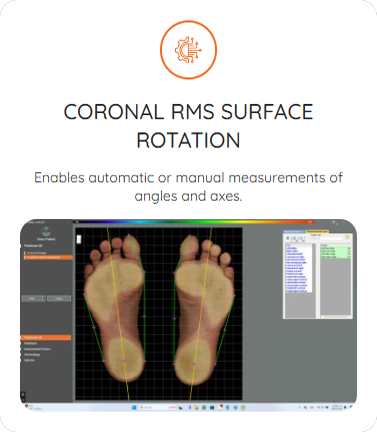

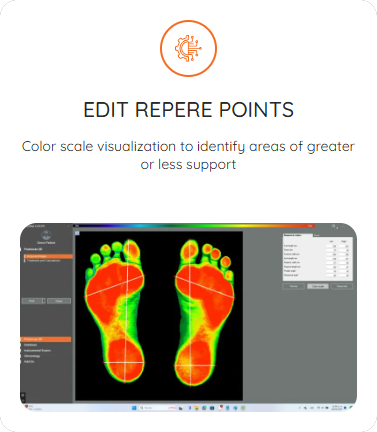

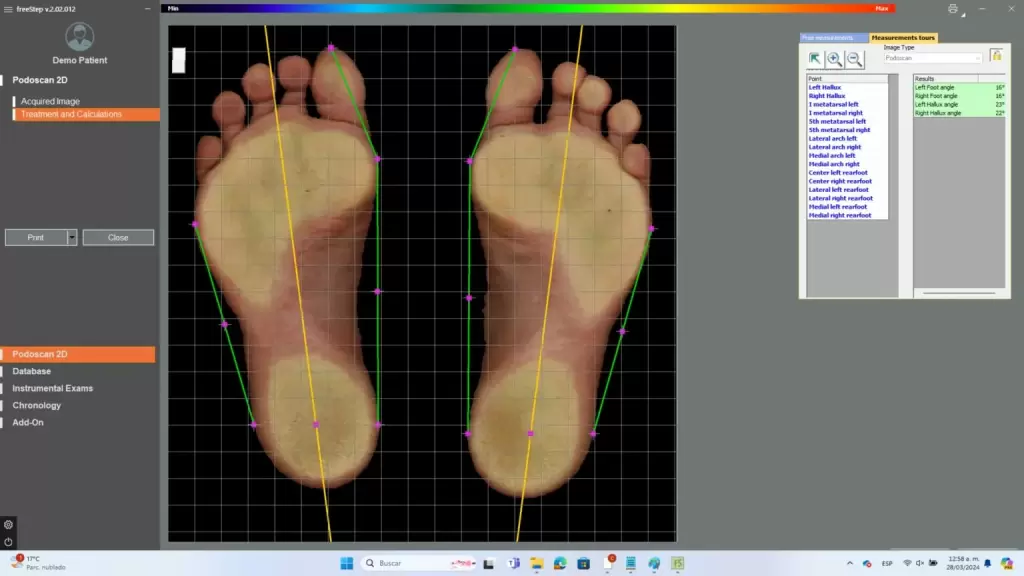

Podoscan 2D offers features such as image archiving, automatic and manual measurements, and the ability to compare pre and post-treatment examinations. Additionally, Podoscan 2D provides a wide range of settings, including brightness, contrast, and saturation adjustments, ensuring optimal data visualization.
Podoscan 2d features
2D scan: 2D Digital scan of foot with footprint detection – Quick and Easy: performing acquisition was never this easy. – Study of the footprints in the clinical / orthopedic field.
Podoscan 2d features
